This guide covers the setup steps for EcoSmart Fire Tables & Pod Series Fire Pits, including burner installation, glass screen placement, and decorative media setup to ensure safe and optimal operation.

Installation

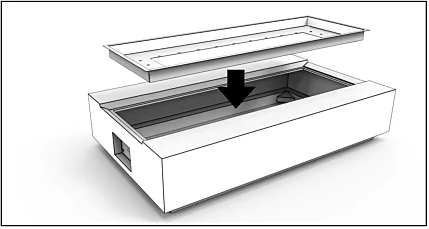

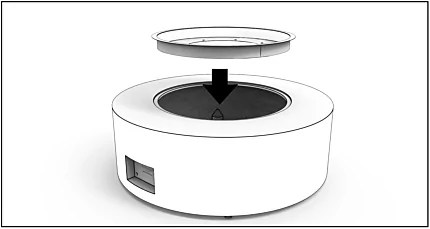

1. If your model comes with a metal tray, insert into the base.

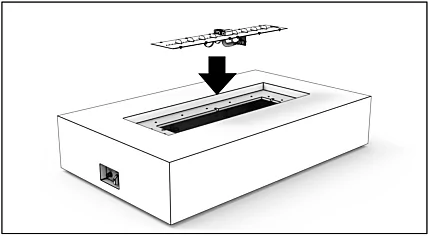

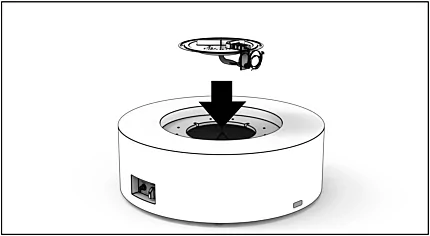

2. Insert Burner into model. Please read assembly instructions in the Operations Manual provided with your burner.

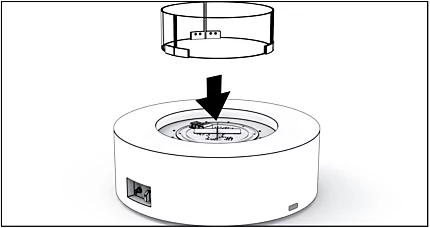

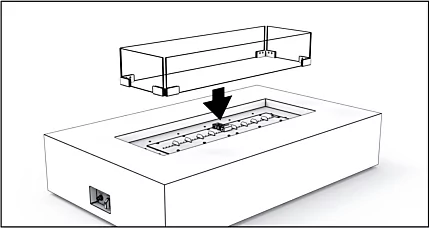

3. Glass Fire Screen Installation. (If applicable).

To assemble the Glass Fire Screens, refer to the assembly manual supplied with your glass fire screen. Do this prior to spreading decorative media within the tray.

Carefully (recommend 2 persons) place the assembled glass fire screen into the table recess, center the glass screens to the burner.

If included as a standard part (compulsory with Gas Teak models), the appliance must not be operated without the glass screen installed.

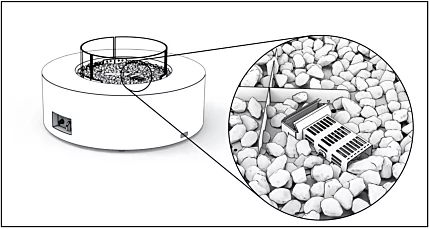

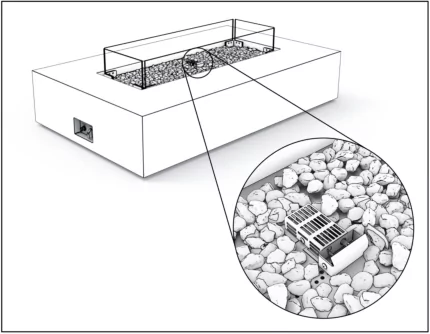

4. Fill the burner area with the included black glass media. Use all black glass charcoal provided for best effect. Keep clear of the sparker to avoid accidental blockage. Spread the media evenly while ensuring the burner is completely covered.

5. These models come with Ground Fixing Brackets so they can be installed in a fixed position. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

Operate according to the Burner Operations Manual included with the burner.

Applies to:

• Fire Tables (Sidecar 24, Ark 40, Base 40, Base 30, Chaser 38, Mojito 40, Vertigo 40, Vertigo 50, Manhattan 50, Martini 50, Cosmo 50, Wharf 65, Daiquiri 70, Gin 90 Low, Gin 90 Chat, Gin 90 Dining, Gin 90 Bar)
• Fire Pits (Pod 30, Pod 40)
