This guide walks you through the assembly and installation of your EcoSmart Fire Gin 90 table, ensuring all components are correctly aligned, secured, and ready for safe operation.

Installation

1. Confirm you have received all necessary parts.

Recommended min 2 person installation.

2. These models come with Ground Fixing Brackets so they can be installed in a fixed position. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

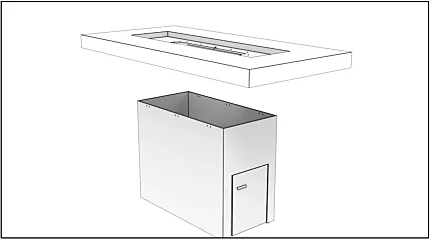

3. Carefully align the Gin 90 top and table base. Ensure the fixing points are aligned.

4. Concrete models only: Using a wrench, install the provided washers and Hex bolts to the provisions.

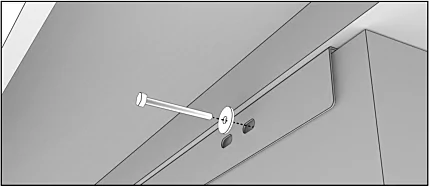

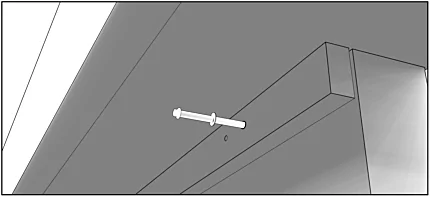

4a. Teak models only: Disassemble the nut and bolt sets. Insert the flange bolts from the underneath of the table top where the fixing positions are aligned. Insert washer and bolt with the thread facing inwards.

4b. Teak models only: Once the bolts have been fully pushed through its fixing positions, install the washer and secure tightly using the wing nut.

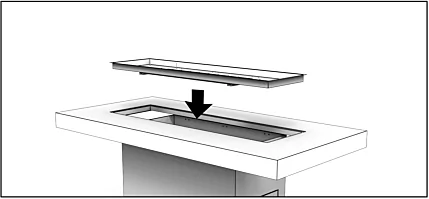

4c. If your model comes with a metal tray, insert into the base.

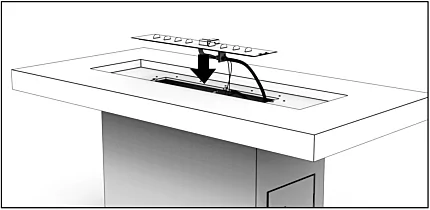

5. Insert Burner into model. Please read assembly instructions in the Operations Manual provided with your burner.

6. Glass Fire Screen Installation. (If applicable).

To assemble the Glass Fire Screens, refer to the assembly manual supplied with your glass fire screen.

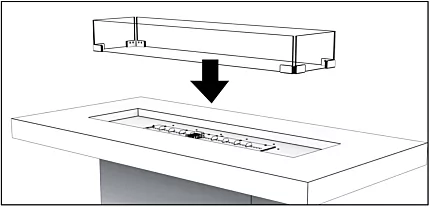

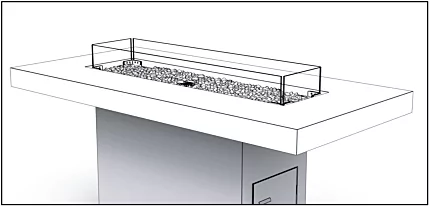

Do this prior to spreading decorative media within the tray.Carefully (recommend 2 persons) place the assembled glass fire screen into the table recess, center the glass screens to the burner.

If included as a standard part (compulsory with Gas Teak models), the appliance must not be operated without the glass screen installed.

7. Fill the burner area with the included black glass media. Use all black glass charcoal provided for best effect. Keep clear of the sparker to avoid accidental blockage. Spread the media evenly while ensuring the burner is completely covered.

If using Propane Gas Bottle

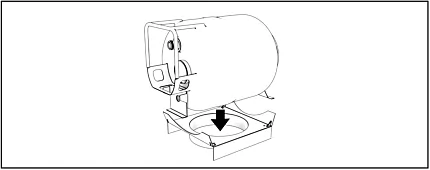

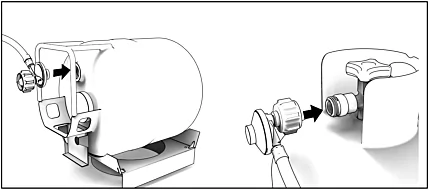

Gin 90 Chat, Dining and Bar Tables are the only models suitable for storing the gas bottle within the table base. Gin 90 Chat: A horizontal propane bottle is required. Turn the propane platform 90º and rest the bottle on the holding tabs.

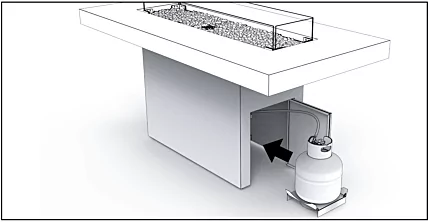

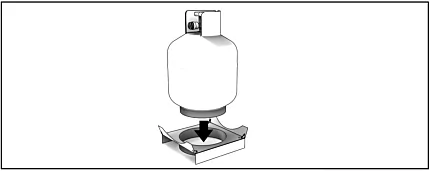

Gin 90 Dining and Gin 90 Bar: Place the gas bottle onto the propane gas bottle platform in the upright position.

Attach gas supply hose to the Propane bottle.

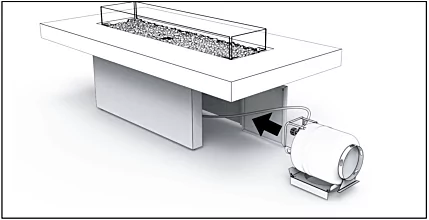

Ensure the Propane Gas Bottle Platform assembly is in the correct orientation. Carefully push the assembly into the cavity within the Table Base. Close the door once in position.

CAUTION: No other items should be stored within the Table Base cavity while the fire is in operation.

Operate according to the Burner Operations Manual included with the burner.

Applies to:

• Gin 90 Low, Gin 90 Chat, Gin 90 Dining, Gin 90 Bar
