This guide walks you through the installation of your EcoSmart Fire Mini T fireplace. Follow each step carefully to ensure safe and correct setup.

Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.

Equipment required: Allan key, Philips screw driver

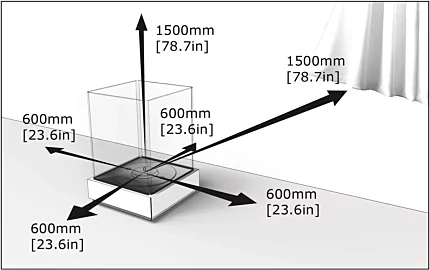

Position the fireplace in accordance to the compulsory minimum clearances outlined on the Fireplace Clearances page.

This model comes with Ground Fixing Brackets so it can be installed in a fixed position.

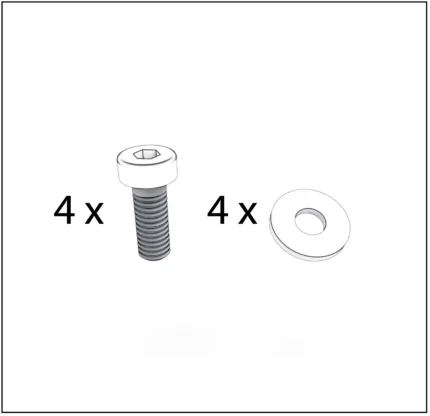

1. Confirm you have received all necessary parts as illustrated.

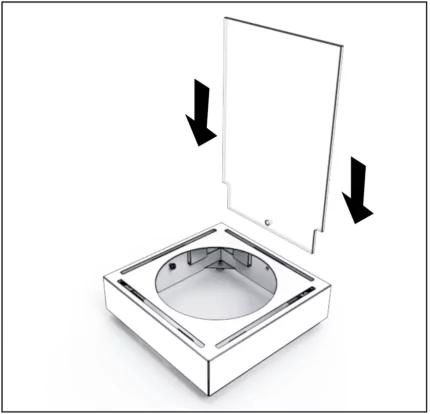

2. Fit glass panel with Ground Fixing hole located on lower edge into slot in base.

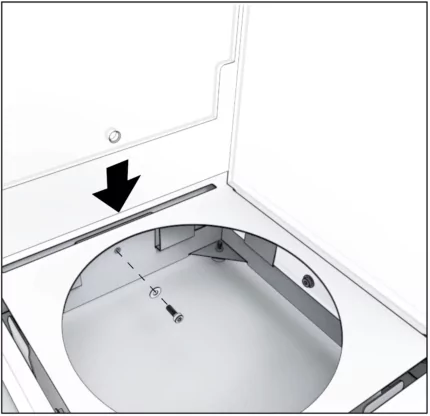

3. Fix glass panel with screw and washer provided gently from inside. DO NOT OVER-TIGHTEN! Repeat for remaining glass panels.

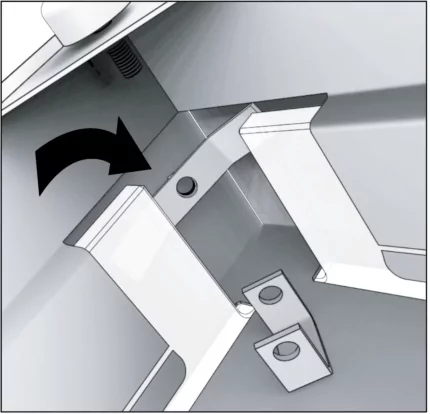

4. Insert the Glass corner adjustment bracket behind the glass panels.

5. Align and feed the bolt through the housing and screw hole of the bracket. Tighten with Philips screw driver to secure the glass.

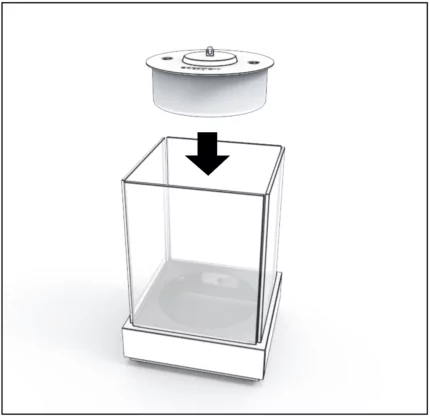

6. Insert burner from above into fireplace.

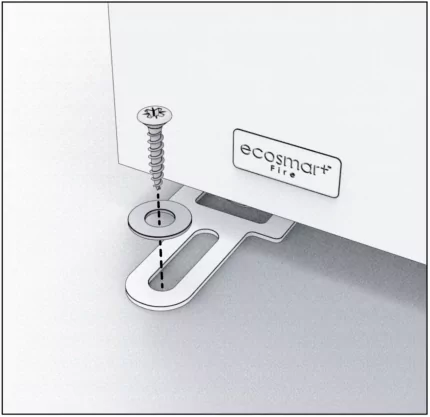

7. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

Rubber feet are attached to the base of the model – ensure these remain in place and that the surface the fireplace is placed on does not reduce the clearances created by the feet, e.g shag carpet and table decorations.

Operate according to the Burner Operations Manual included with the burner.

Applies to:

• Mini T
