This guide walks you through the installation of your EcoSmart Fire Stix fireplace. Follow each step carefully to ensure safe and correct setup.

Equipment required: Philips head screw driver

1. Confirm you have received all necessary parts as illustrated.

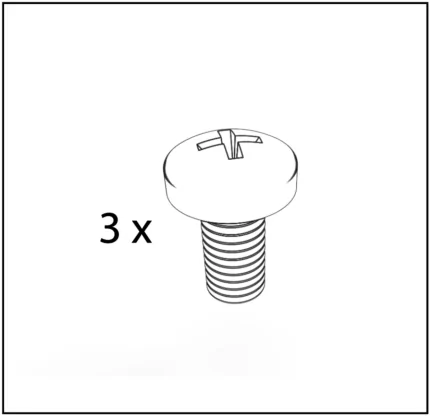

2. Remove the three (3) screws (part A) that are in place on the outside rim;

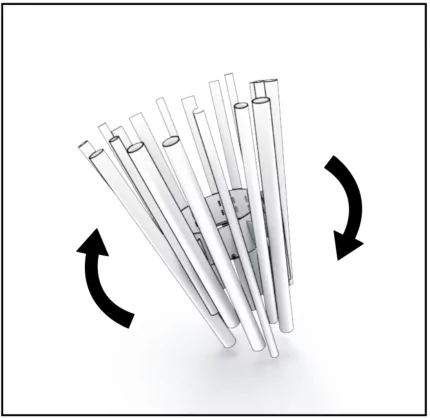

3. To insert burner, carefully turn the model upside down;

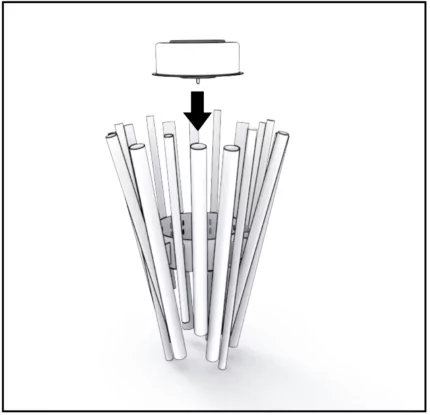

4. Insert burner from above, with burner face facing down;

5. Once the burner is positioned against the top rim of the Stix centre, screw into position with three (3) screws (part A) from the outside of the model;

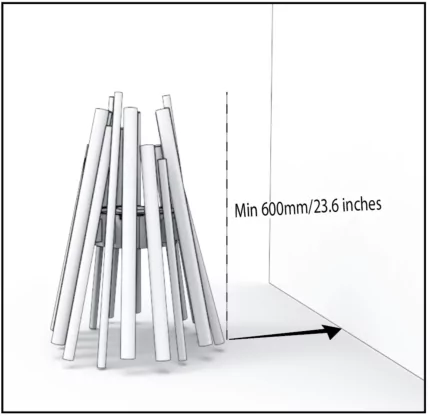

6. Carefully turn the model to upright position. Position the fireplace in accordance to the compulsory minimum clearances outlined in the Instruction Manual.

7. This model comes with Ground Fixing Brackets so that it can be installed in a fixed position. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

*If located in coastal areas or near swimming pools, Stix needs to be washed down regularly to remove salt/pool water to prevent rust.

Operate according to the Burner Operations Manual included with the burner.

Applies To:

• Fire Pits (Stix, Stix 8)
